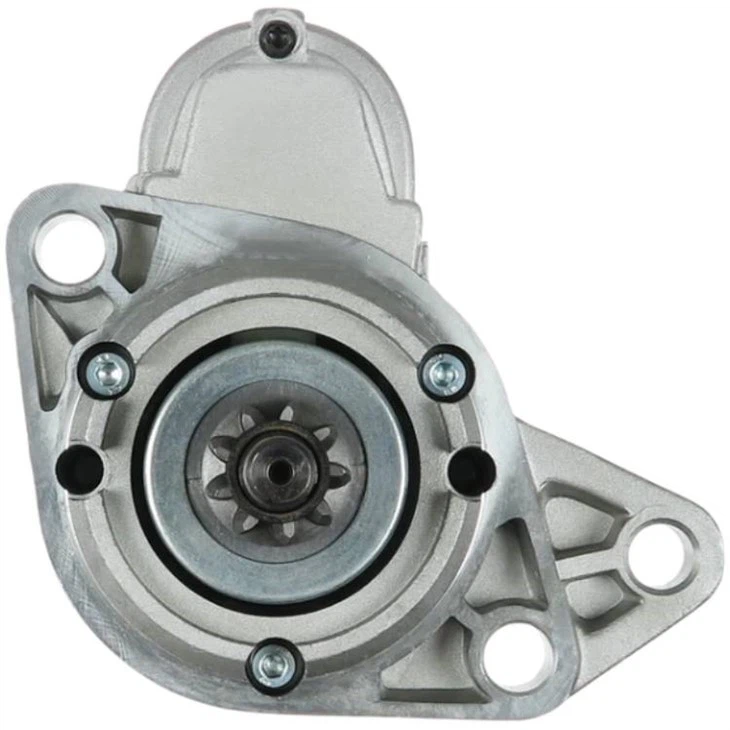

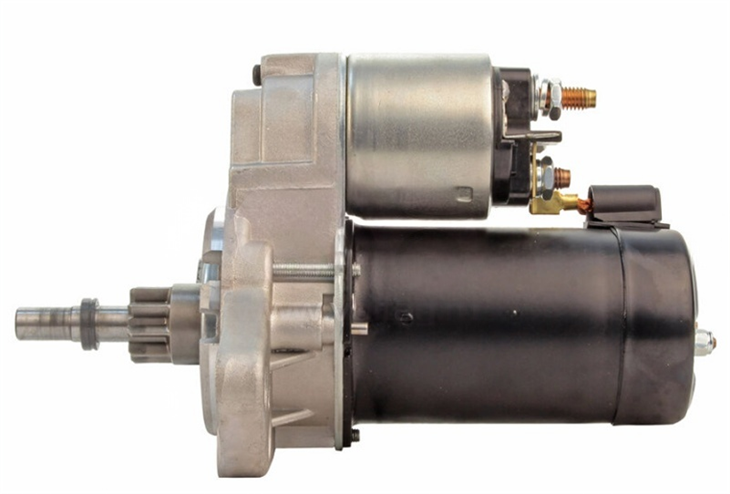

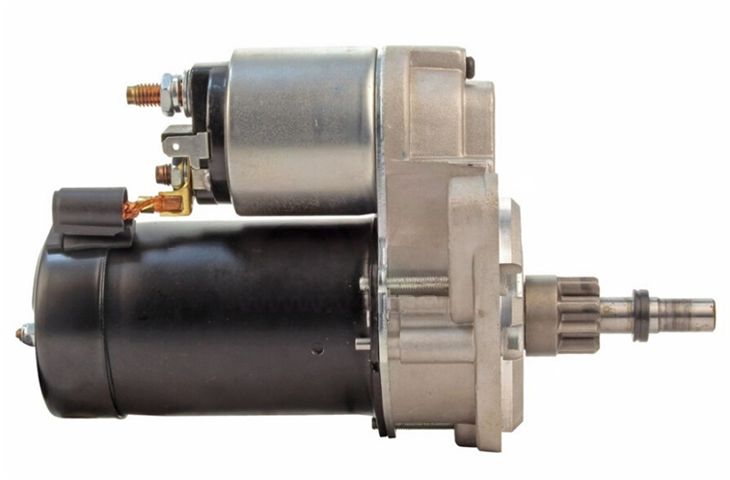

Valeo 432605, 432656, D7ES7, D9E111, D9E140, ND141 VW 037911023, 055911023M, 176911023A VW Caddy 1.6 [EW] VW Caddy 1.8 [JH]

VW Caddy 1.6 [EW] 08.1986-07.1992 VW Caddy 1.8 [JH] 08.1985-07.1992 VW CoRado 1.8 16V [KR] 09.1988-07.1991 AT VW CoRado 1.8 G60 [PG] 09.1988-07.1991 AT VW Golf I 1.6 [EW] 08.1983-12.1992 VW Golf I 1.6 [RE] 04.1986-02.1990 VW Golf I 1.8 [2H] 08.1989-08.1993 VW Golf I 1.8 [DX] 08.1983-07.1992 VW Golf I 1.8 [EV] 01.1984-07.1987 VW Golf I 1.8 [EX] 08.1983-12.1992

Send Inquiry

Product Parameters:

Voltage [ V ]	12
Power [ kW ]	1.1
No./teeth [ qty. ]	9
Rotation	CCW

OEM Reference

VALEO	432605, 432656, 433266, 436019, 436022, 436039, D7ES7, D9E111, D9E140, ND141
Bosch	0001106001, 0001106002, 0001107007, 0001107008, 0001110116, 0001112003, 0001112004, 0001112039, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 0986012590, 0986012598, 0986012600, 0986018200, 9000042057, 9000692050, B001110116, B001181007
VW	037911023, 055911023E, 055911023F, 055911023FX, 055911023H, 055911023HX, 055911023J, 055911023JX, 055911023K, 055911023KX, 055911023L, 055911023M, 055911023MX, 055911023R, 176911023A
WAI	2-1367-BO, 2-1373-VA,17134N, 17222N
ROVER	ADU9356, ADU9357, AUU1233, AUU1237, GEU4491, GEU4492, GEU4539, GNU4491, GNU4492, GNU4538, GNU4539, GXE4491, GXE4492, GXE4538, GXE4539
KRAUF	STB0294BA, STB0294RD, STB0294US, STB0294ZL, STB9294RD, STB9294RN, STV0294BW, STV0294RD, STV0294WL, STV8294BA, STV9294RD
Unipoint	STR2016

q&A

Q: how to install a motor in a car

A:1.Disconnect the car battery and locate the starter under the hood.

2.Disconnect the wiring from the starter's solenoid (terminal).

3.Unscrew the retaining bolts that hold the starter in place and remove it.

4.Slide a new, identical starter into position where the old one was.

5.Reinsert the retaining bolts and reconnect the wiring and battery.

Q: how do you test a starter motor
Locate engine starter solenoid

Bridge them with screwdriver (bypasses ignition circuit)

If starter spins: Solenoid is bad

If no spin: Starter motor is dead

Q: Can you do OEM and ODM?

A: Yes, both OEM and ODM are acceptable. Materials, styles, and special requirements can all be customized. We will discuss the basic quantity and suggest it.
